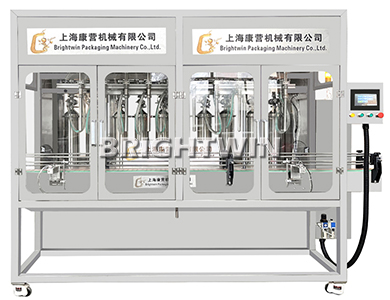

直线式全自动伺服活塞缸液体/半流体灌装机

液体/半流体直线式灌装机，适用于各种流体、半流体如：食用油，润滑油、果酱、蜂蜜、口服液、黄油、护肤品、化妆品、饮料、肉酱等。对于流动性好的液体采用单向阀；流动性差的半流体采用转阀。

This filling machine can fill both liquid and thick liquid like cooking oil, lubricant oil, beverage, honey, jam, sauce, meat paste, shampoo, and cosmetics etc. For liquid product, adopts non-return valve;  for thick liquid, adopts rotary valve.

优势：

1. SUS316L灌装头和活塞，SUS304框架，
2. 厚度5mm SUS316L珩磨活塞缸
3. SUS316L活塞配范密封
4. SUS316L全金属阀
5. 采用静音无划痕的德国进口轴承
6. 每个灌装头都有检测，任一个灌装头工作不正常会报警停机
7. 每个阀都有检测，任一个阀不工作会报警停机
8. 意大利进口塑料管道

Our advantages:

1. SUS316L filling nozzles and piston pump, SUS304 for machine frame.
2. 5MM thick SUS316L honing piston pump, which is more smooth without leak.
3. SUS316L piston with special sealing ring from Germany
4. SUS316L valve( non-return valve for liquid; rotary valve for thick liquid)
5. Adopt silent and scratch free bearing imported from Germany
6. With detecting system in each filling nozzle, it would alarm and stop automatically if any nozzle doesn’t work. And it shows in touch screen.
7. With detecting system in each valve, it would alarm and stop automatically if any valve doesn’t work. And it shows in touch screen.
8. The hose imported from Italy.

特性：

1. 整机可调，适用于不同瓶形及尺寸
2. 适用于任一可立容器
3. 灌装头数1-16可选,亦可根据产量要求定做
4. 装量范围10ml-5L内可选
5. 灌装误差可达到±0.1%

Feature:

1. The machine is adjustable, it is applicable for different bottle sizes and shapes.
2. Applicable for any kind of vertical container.
3. The filling nozzles is optional from 1 to 16 according to the capacity.
4. The volume is optional from 10ml to 5000ml
5. The minimum accuracy can be ±0.1%
