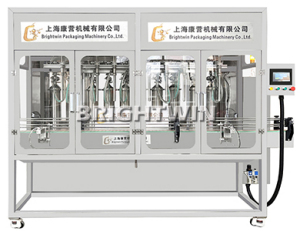

Servo controlled piston pump filling machine
Servo controlled piston pump filling machine
  • Servo controlled piston pump filling machine
  • Servo controlled piston pump filling machine

Servo controlled piston pump filling machine

This filling machine can fill both liquid and thick liquid like cooking oil, lubricant oil, beverage, honey, jam, sauce, meat paste, shampoo, and cosmetics etc. For liquid product, adopts non-return valve; for thick liquid, adopts rotary valve.

Contact Us
Service Hotline: 18818002367

This filling machine can fill both liquid and thick liquid like cooking oil, lubricant oil, beverage, honey, jam, sauce, meat paste, shampoo, and cosmetics etc. For liquid product, adopts non-return valve;  for thick liquid, adopts rotary valve.


Our advantages:

  1. SUS316L filling nozzles and piston pump, SUS304 for machine frame.
  2. 5MM thick SUS316L honing piston pump, which is more smooth without leak.
  3. SUS316L piston with special sealing ring from Germany
  4. SUS316L valve( non-return valve for liquid; rotary valve for thick liquid)
  5. Adopt silent and scratch free bearing imported from Germany
  6. With detecting system in each filling nozzle, it would alarm and stop automatically if any nozzle doesn’t work. And it shows in touch screen.
  7. With detecting system in each valve, it would alarm and stop automatically if any valve doesn’t work. And it shows in touch screen.
  8. The hose imported from Italy.


Feature:

  1. The machine is adjustable, it is applicable for different bottle sizes and shapes.
  2. Applicable for any kind of vertical container.
  3. The filling nozzles is optional from 1 to 16 according to the capacity.
  4. The volume is optional from 10ml to 5000ml
  5. The minimum accuracy can be ±0.1%
